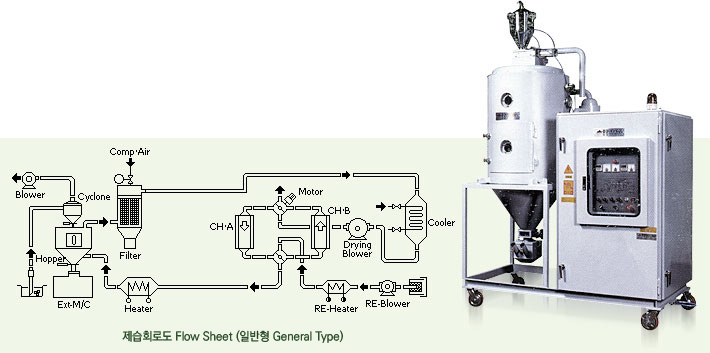

Model | Dryer Temp. Max.(¡É) |
Dew Point |
Drying of Blower (m/m) |
Regeneration of Blower |
Drying Heater(§Ò) |
RE Heater |
Hopper Cap |
Cooler Cap |
||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
High | Point Temp. |
P (¡É) |
W.P (§Ò) |
S.P (§³/min) |
P (§®Aq) |
W.P (§Ò) |
S.P (§³/min) |
Low (§®Aq) |
High | Temp. (§Ò) |
(§¸) | (1/min) | ||
HRD-50 | 150 | 180 | -30 | 0.4 | 6 | 280 | 0.2 | 3.2 | 280 | 5 | 7 | 5 | 50 | 20 |
HRD-100 | 150 | 180 | -30 | 0.4 | 7.1 | 405 | 0.2 | 3.2 | 280 | 7 | 10 | 6 | 100 | 20 |
HRD-200 | 150 | 180 | -30 | 1.5 | 10 | 500 | 0.2 | 3.2 | 280 | 10 | 16 | 8 | 200 | 40 |
HRD-300 | 150 | 180 | -30 | 1.5 | 10 | 500 | 0.4 | 4.5 | 320 | 13 | 23 | 10 | 300 | 60 |
HRD-400 | 150 | 180 | -30 | 2.2 | 16 | 600 | 0.4 | 4.5 | 320 | 16 | 27 | 12 | 400 | 60 |
Material | Intial Moisture Content (%) | Drying Time (H) | Drying Temp.(¡É) |
---|---|---|---|
ABS Acrylnitril Butadien Styrene | 0.6 | 2~3 | 80 |
CA Cellulose Acetate | 1.3 | 2~3 | 75 |
CAP Cellulose Acetate Butyrate | 1.3 | 2~3 | 75 |
CP Cellulose Propion ate | 1.3 | 2~3 | 75 |
Ionomer | 1.4 | 2~3 | 90 |
PA 6 Polyamide | 1 | 4~6 | 75 |
PA 66 Polyamide 66 | 1 | 4~6 | 75 |
PA 6, 10 Polyamide 6, 10 | 1 | 3~4 | 75 |
PA 11 Polyamide 11 | 1 | 3~4 | 75 |
PA 12 Polyamide 12 | 1.8 | 2~3 | 75 |
PC Polycarbonate | 0.36 | 2~3 | 120 |
PE Polyethylene | 0 | 1 | 90 |
PE Polyethylene w/carbon black | 0.5 | 3~6 | 85 |
PET Polyethyleneterephthalate | 0.4 | 3~6 | 160 |
PBT Polybut hyleneterepht halate | 0.4 | 3 | 160 |
Pl Polyimide | 0.32 | 3 | 120 |
PMMA Polymethylmethacrylate | 0.7 | 2~4 | 80 |
Polyaulfone | 0.22 | 3 | 120 |
POM Polyoxymethylene | 0.25 | 3 | 100 |
PP Polyprophlene | 0 | 1 | 90 |
PPO Plyphenyleneoxide (NorlR) | 0.13 | 3 | 120 |
PS Polystyrene | 0 | 1 | 80 |
PUR Polyurethane | 0.9 | 3 | 90 |
PVC Polyvinyl chloride | 0.4 | 1 | 70 |
SAN Styrene acrylonitrile copolymer | 0.3 | 2~3 | 80 |
SB Styene Hi-impact | 0.6 | 2 | 80 |
Ionomer (SurlynR) | 1 | 2~8 | 50 |
VPE Crosslinked Polyethyethylene | 2 | 6 | 50 |
KODAR PETG 6763 | 1.8 | 4 | 66 |
